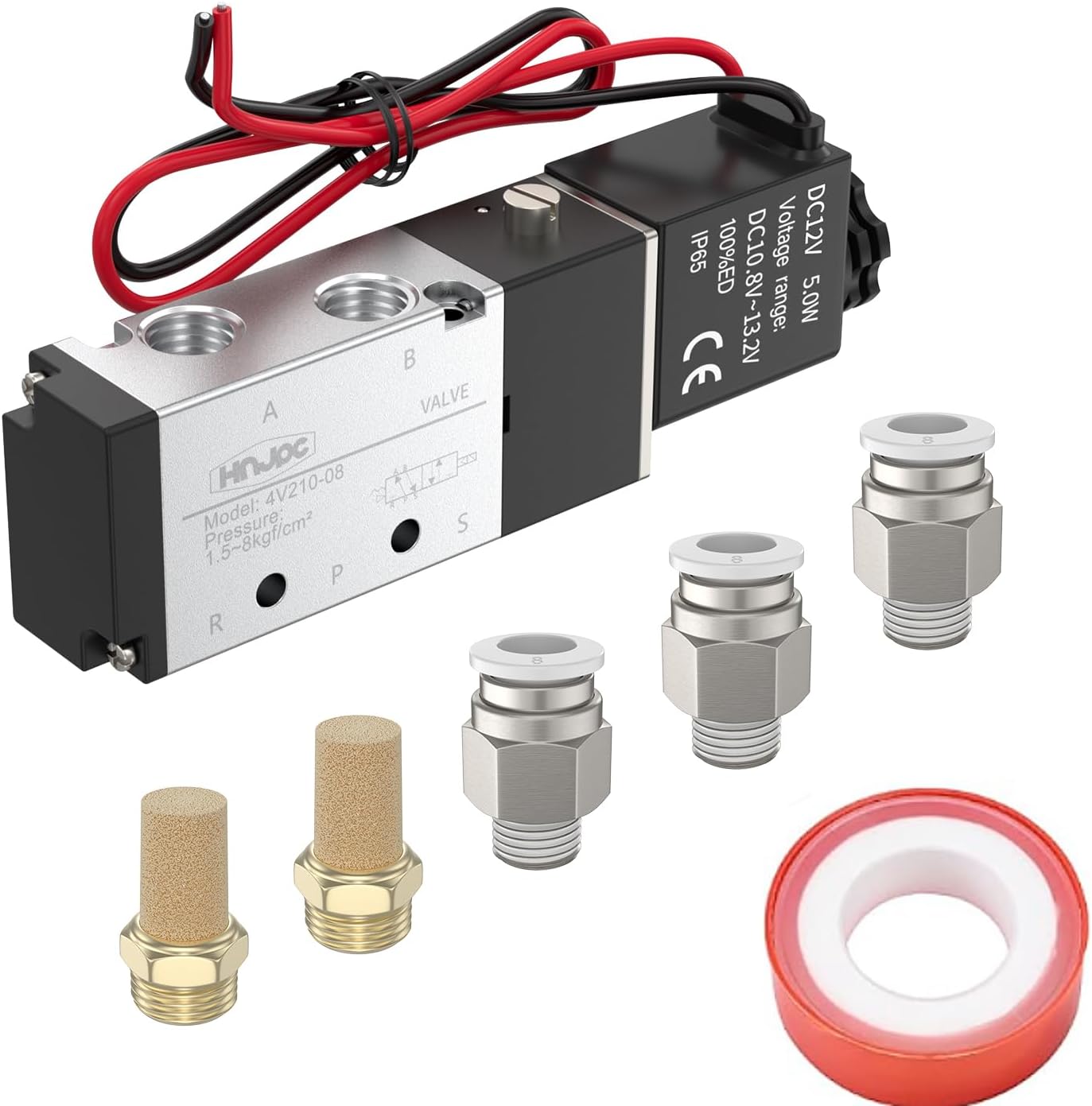

4V210-08 5/2 Way Pneumatic Solenoid Valve, 12V DC Single Solenoid Pilot Operated, Electric Air Control Valve for Air Cylinders, Automation (4V210-08 DC12V)
Product details
| Management number | 247464889 | Release Date | 2026/08/16 | List Price | US$5.59 | Model Number | 247464889 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Port Size: Air Inlet (P)=G1/4,Air Outlet(A B)=G1/4,Air Exhaust(R S)=G1/8
- Working Pressure Range: 22~120Psi (0.15~0.8MPa)
- Working Temperature: 32~140℉ (0~60℃)
- Voltage: DC12V Working principle:The 4V210 solenoid valve is normally closed When the coil is powered off, the air valve remains closed; When the coil is energized, the air valve opens.
| ASIN | B0BRPHP98X |
|---|---|
| Size | Small |
| Brand Name | HNJPC |
| Unit Count | 1 Count |
| Valve Type | Air Control Valve |
| Thread Size | 1/4 inch (inlet, outlet), 1/8 inch (exhaust) |
| Thread Type | NPT |
| Manufacturer | HNJPC |
| Model Number | 4V210-08 |
| Material Type | Aluminum, Copper |
| Item Type Name | Pneumatic solenoid valve |
| Exterior Finish | Aluminum |
| Item Dimensions | 4.7 x 0.86 x 2.6 inches |
| Number of Ports | 5 |
| Maximum Pressure | 120 psi |
| Included Components | Pneumatic fittings |
| Inlet Connection Size | 0.25 inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.25 inches |
| Outlet Connection Type | NPT |
